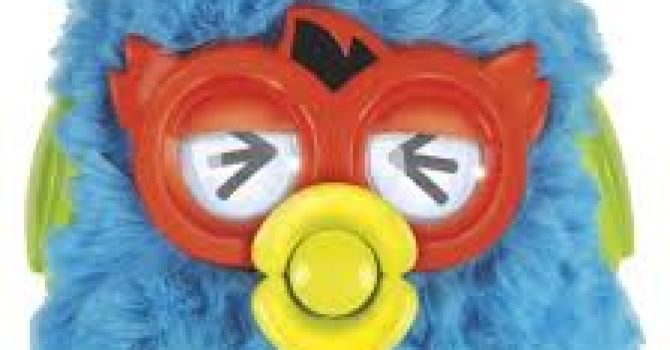

Furby from hell
https://www.youtube.com/watch?
https://www.youtube.com/watch?
https://www.youtube.com/watch?
https://www.youtube.com/watch?
#include <TimerOne.h>
#define pwmRegister OCR1A // the logical pin, can be set to OCR1B
const int ledIN = 8; // from furby leds to pin 8
const int outPin = 9; // output for arduino clock
const int B_led = 10; // RGB led B leg...
const int G_led = 11; // RGB led G leg...
const int R_led = 12; // RGB led R leg...
long period = 1000; // the period in microseconds
int duty = 512; // duty as a range from 0 to 1024, 512 is 50% duty cycle
int prescale[] = {0, 1, 8, 64, 256, 1024}; // the range of prescale values
int IRpin = 1; // analog pin for reading the IR sensor
float distances [20]; // array to store values for better sensor reading
float gooddistances = 0; // variable to store good values from sensor
int gooddistancescount = 0; // variable for count good values
void setup() {
// Serial.begin(9600); // start the serial port
pinMode(outPin, OUTPUT); // define pin 9 as output
pinMode(R_led, OUTPUT); // define pin 12 as output
pinMode(G_led, OUTPUT); // define pin 11 as output
pinMode(B_led, OUTPUT); // define pin 10 as output
pinMode(ledIN, INPUT); // define pin 12 as input
ledoff();
delay(1000);
Rled();
delay(1000);
Gled();
delay(1000);
Bled();
delay(1000);
ledoff();
Timer1.initialize(period); // initialize timer1, 1000 microseconds
Timer1.pwm(9, duty); // setup pwm on pin 9, 50% duty cycle
}
void loop() {
for (int i = 0; i < 20; i++) {
//get value from sharp sensor
float volts = analogRead(IRpin)*0.0048828125; // value from sensor * (5/1024) - if running 3.3.volts then change 5 to 3.3
float distance = 65 * pow(volts, -1.10); // worked out from graph 65 = theretical distance / (1/Volts)S - luckylarry.co.uk
distances [i] = distance;
/*
Serial.print("Distance ");
Serial.print(i);
Serial.print(":");
Serial.println(distances [i]);
*/
}
// To get better readings use only repeating ones
for (int i = 0; i < 20; i++) {
for (int j = 0; j < 20; j++)
if (i != j) {
if (distances[i] == distances[j]) {
gooddistances = gooddistances + distances[i];
gooddistancescount++;
}
/*
Serial.print("Distance i:");
Serial.println(distances[i]);
Serial.print("Distance j:");
Serial.println(distances[j]);
Serial.print("Gooddistance:");
Serial.println(gooddistances);
Serial.print("Gooddistancecount:");
Serial.println(gooddistancescount);
*/
}
}
//if readings are good
if (gooddistances / gooddistancescount > 10 && gooddistances / gooddistancescount < 90) {
// Serial.print("Distance:");
// Serial.println(gooddistances/gooddistancescount);
period = gooddistances / gooddistancescount - 10; // set furby clock depending on distance from sharp
if (digitalRead(ledIN) == HIGH) //Turn on leds only if furby leds are on
{
if (period > 20 && period < 40) {
Rled();
}
else if (period > 40 && period < 60) {
Gled();
}
else if (period > 60 && period < 80) {
Bled();
}
} else {
ledoff(); //if furby led if off turn our leds off
}
// Serial.print("Setting period to ");
// Serial.println(period);
Timer1.setPeriod(period);
Timer1.setPwmDuty(outPin, duty); // don't change the duty cycle
}
gooddistances = 0; //reset values
gooddistancescount = 0; //reset values
}
//somefunction from TimerOne library
bool setPulseWidth(long microseconds) {
bool ret = false;
int prescaleValue = prescale[Timer1.clockSelectBits];
// calculate time per tick in ns
long precision = (F_CPU / 128000) * prescaleValue;
period = precision * ICR1 / 1000; // period in microseconds
if (microseconds < period) {
duty = map(microseconds, 0, period, 0, 1024);
if (duty < 1)
duty = 1;
if (microseconds > 0 && duty < RESOLUTION) {
Timer1.pwm(outPin, duty);
ret = true;
}
}
return ret;
}
//Turn LEDs off
void ledoff() {
digitalWrite(R_led, LOW);
digitalWrite(G_led, LOW);
digitalWrite(B_led, LOW);
}
//Turn only R LED
void Rled() {
digitalWrite(R_led, HIGH);
digitalWrite(G_led, LOW);
digitalWrite(B_led, LOW);
}
//Turn only G LED
void Gled() {
digitalWrite(R_led, LOW);
digitalWrite(G_led, HIGH);
digitalWrite(B_led, LOW);
}
//Turn only B LED
void Bled() {
digitalWrite(R_led, LOW);
digitalWrite(G_led, LOW);
digitalWrite(B_led, HIGH);
}
